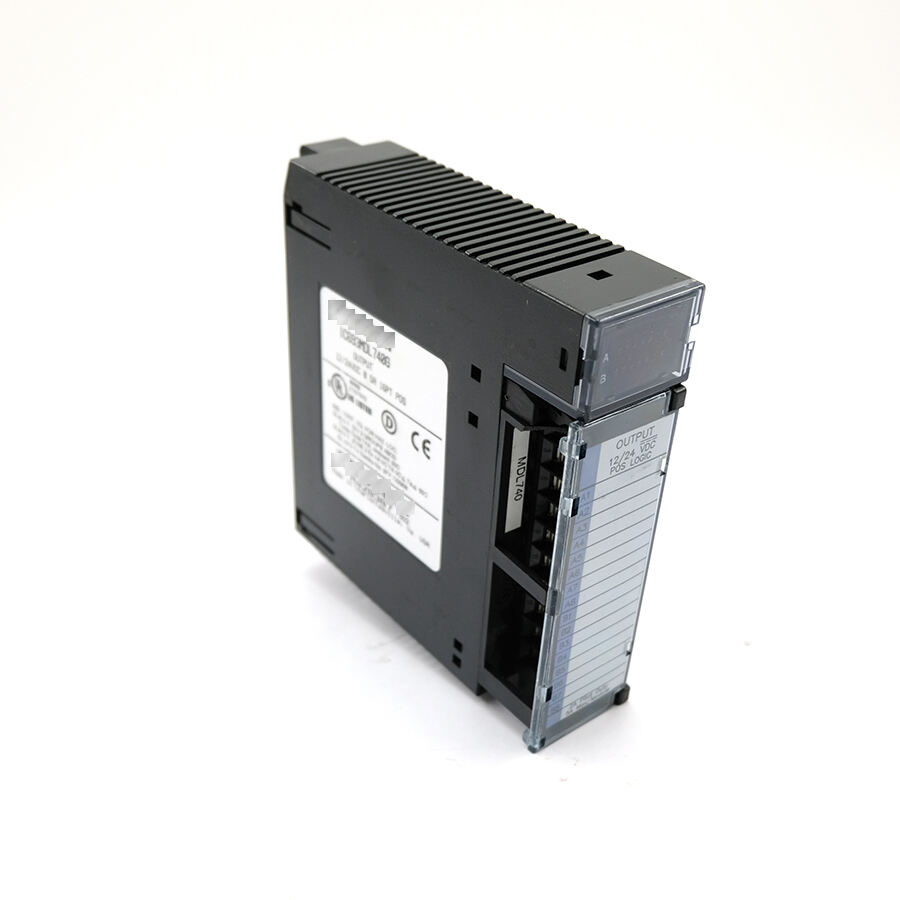

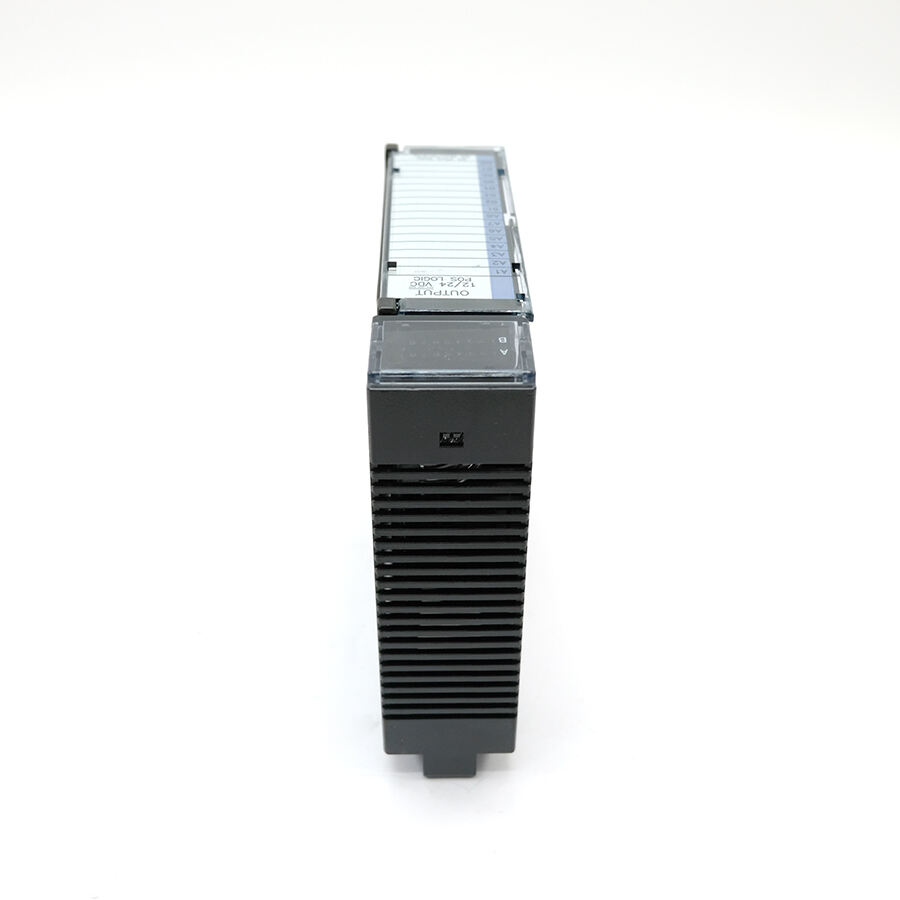

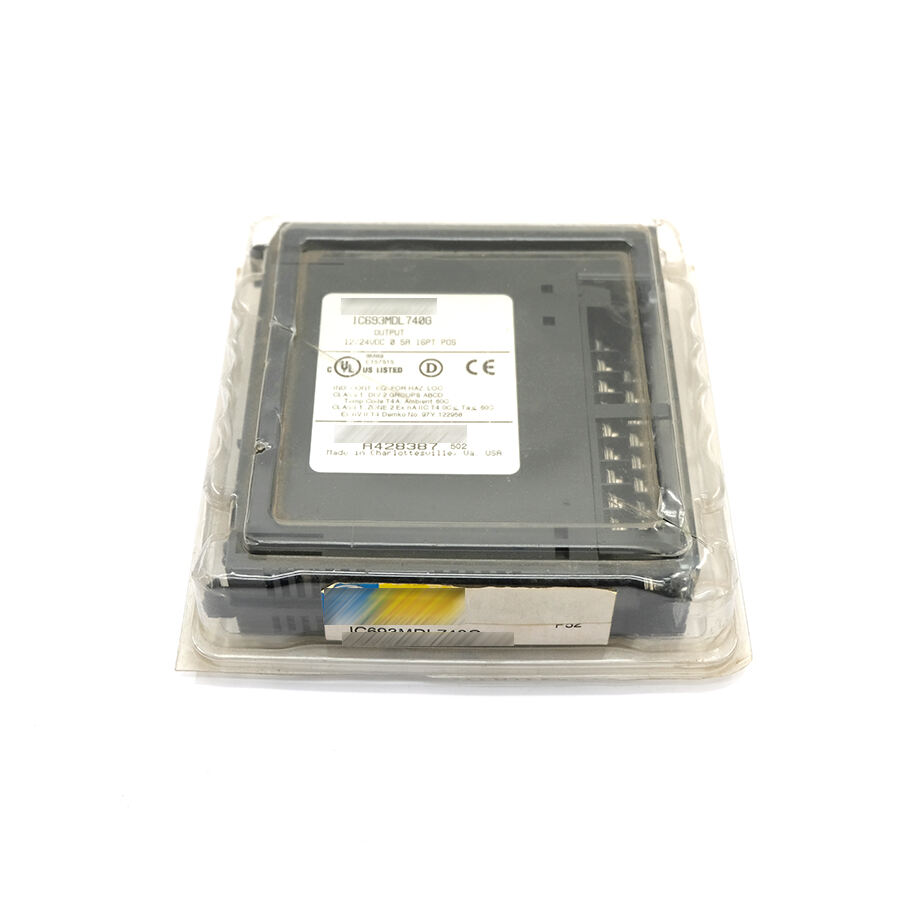

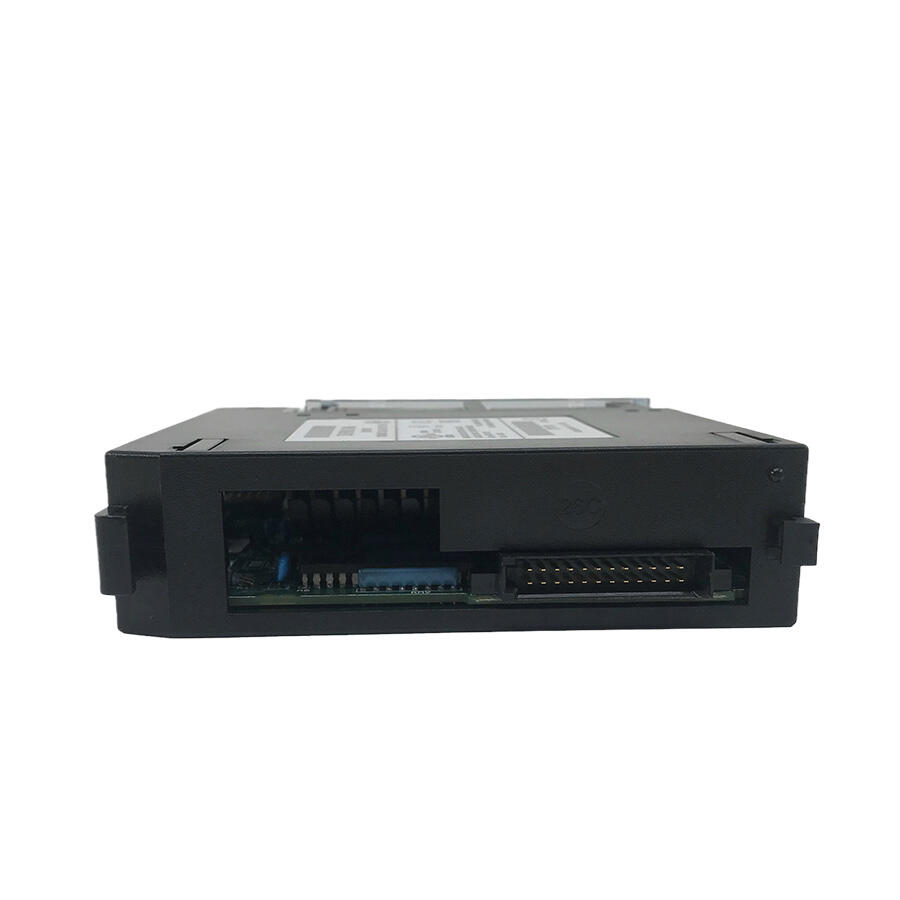

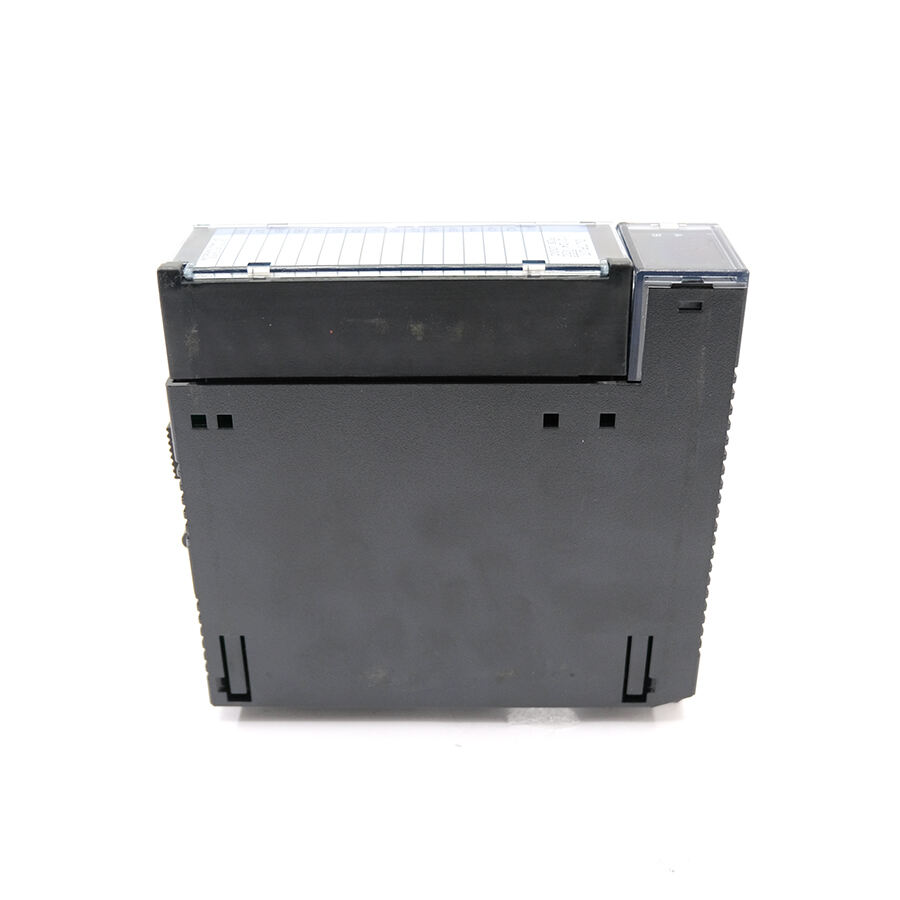

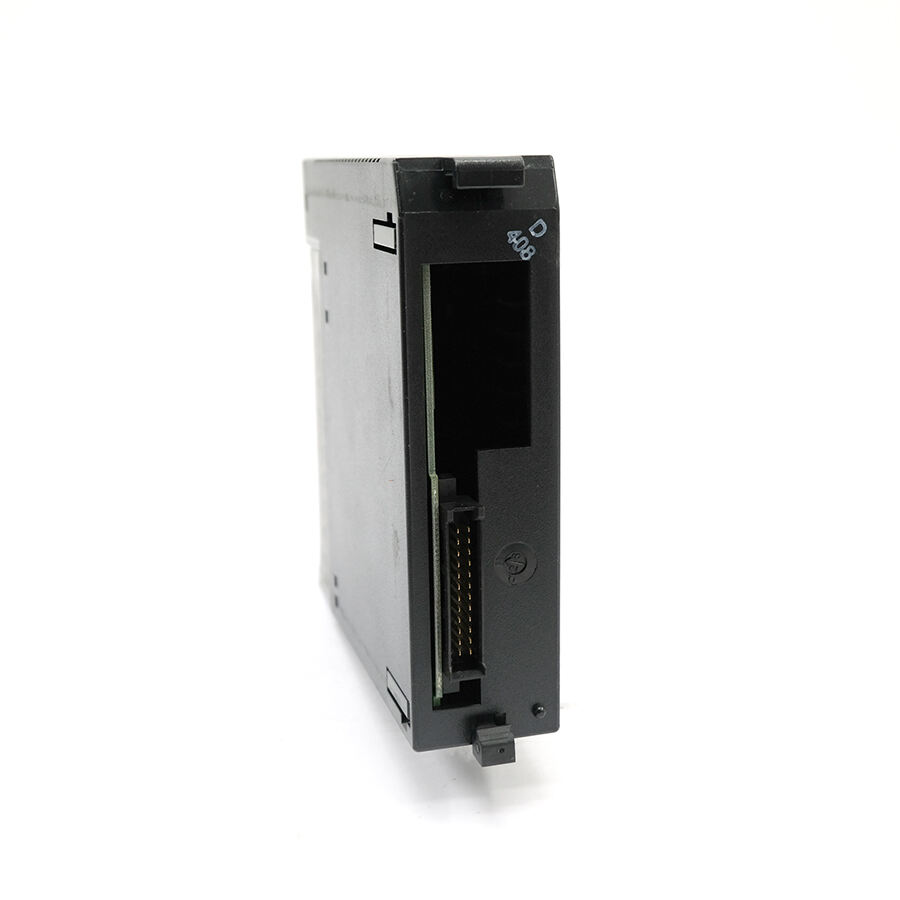

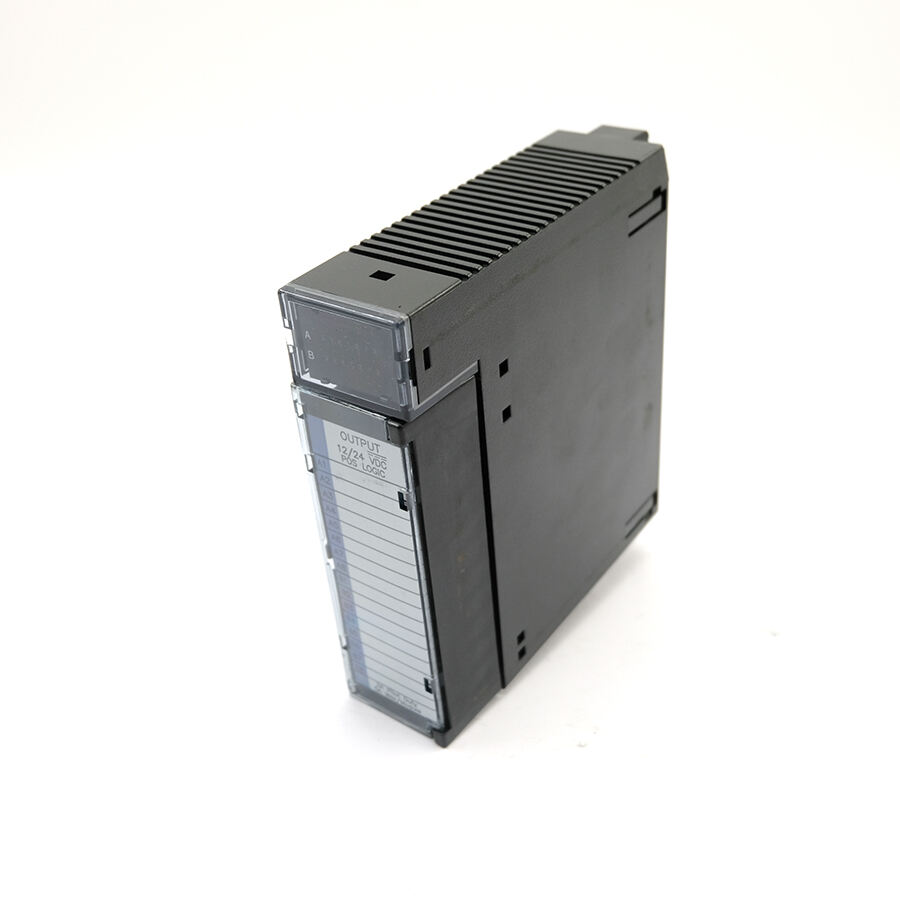

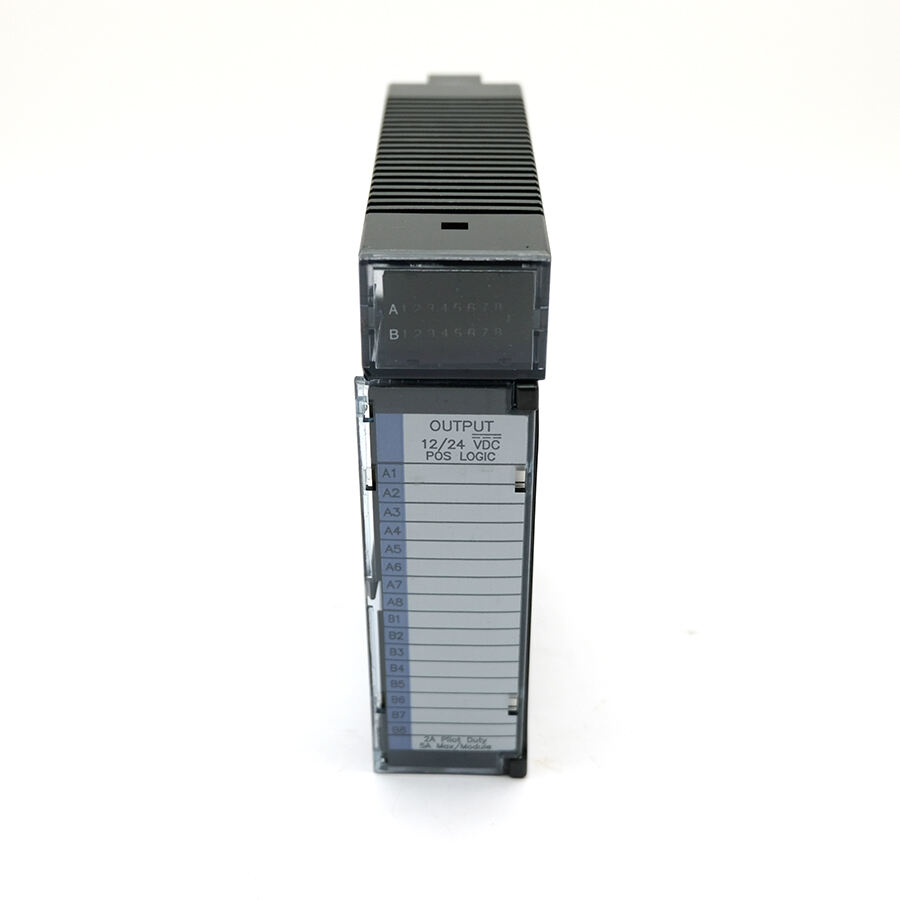

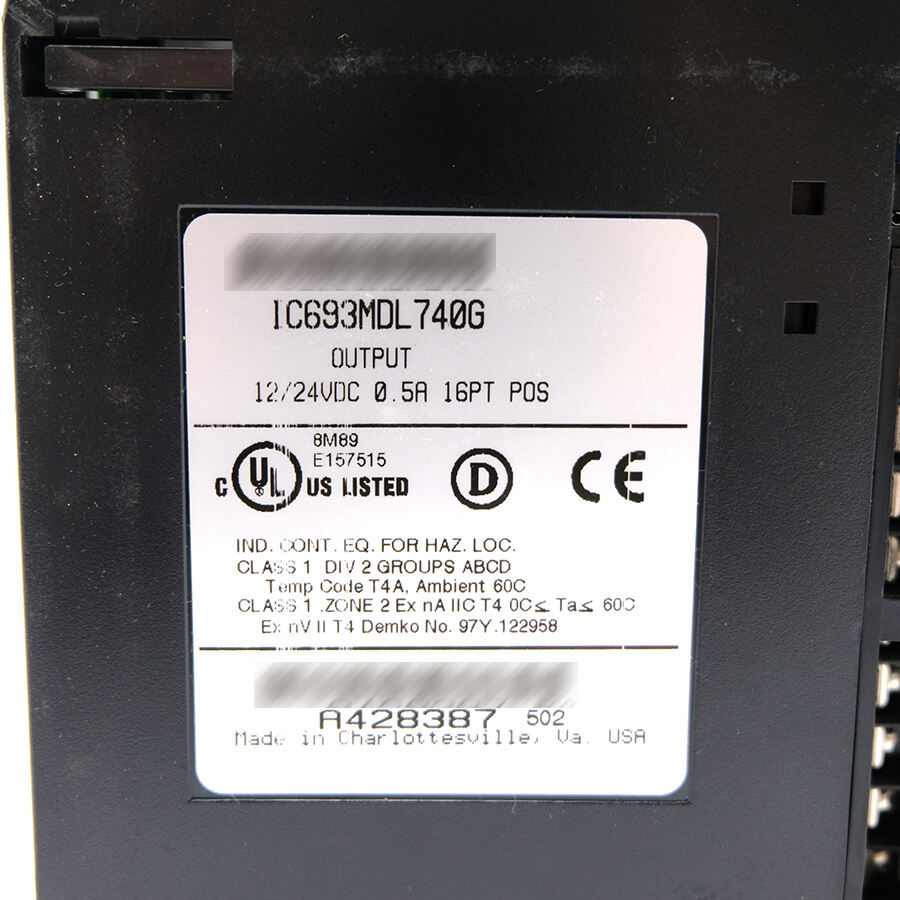

The GE Fanuc IC693MDL740G is a 16-point DC positive logic (sourcing) output module for the Series 90-30 PLC system . It has a rated operating voltage of 12-24VDC, an output current capability of 0.5A per channel, and a maximum group current of 2A . This module uses a sourcing output method to output control signals from the PLC to drive DC loads such as contactors, relays, and pilot lamps . It supports a wide voltage range of 12-24VDC (+20%, -15%), features fast response times (ON and OFF response times ≤2ms), and is equipped with LED status indicators for easy diagnostics and maintenance . The module is commonly used in industrial automation, machine control, and process monitoring applications .
Get a Quote
① Brand new 24 months warranty
② Available for dispatch immediately
③ 7-Day Global Delivery
④ 7x24 hours technical response
Product Parameters:
Parameter |
Value |
Model Number |
IC693MDL740G |
Output Type |
DC Positive Logic (Sourcing) |
Number of Output Points |
16 points |
Number of Groups |
2 groups |
Points per Group |
8 points |
Rated Output Voltage |
12/24 VDC |
Operating Voltage Range |
12 to 24 VDC (+20%, –15%) |
Rated Output Current per Point |
0.5 A |
Max Output Current per Group |
2 A (for 10 ms) |
Inrush Current |
4.78 A (for 10 ms) |
Output Voltage Drop |
1 VDC maximum |
Off-state Leakage Current |
1 mA maximum |
ON Response Time |
2 ms maximum |
OFF Response Time |
2 ms maximum |
5V Backplane Power Consumption |
110 mA (all outputs ON) |
Connection Type |

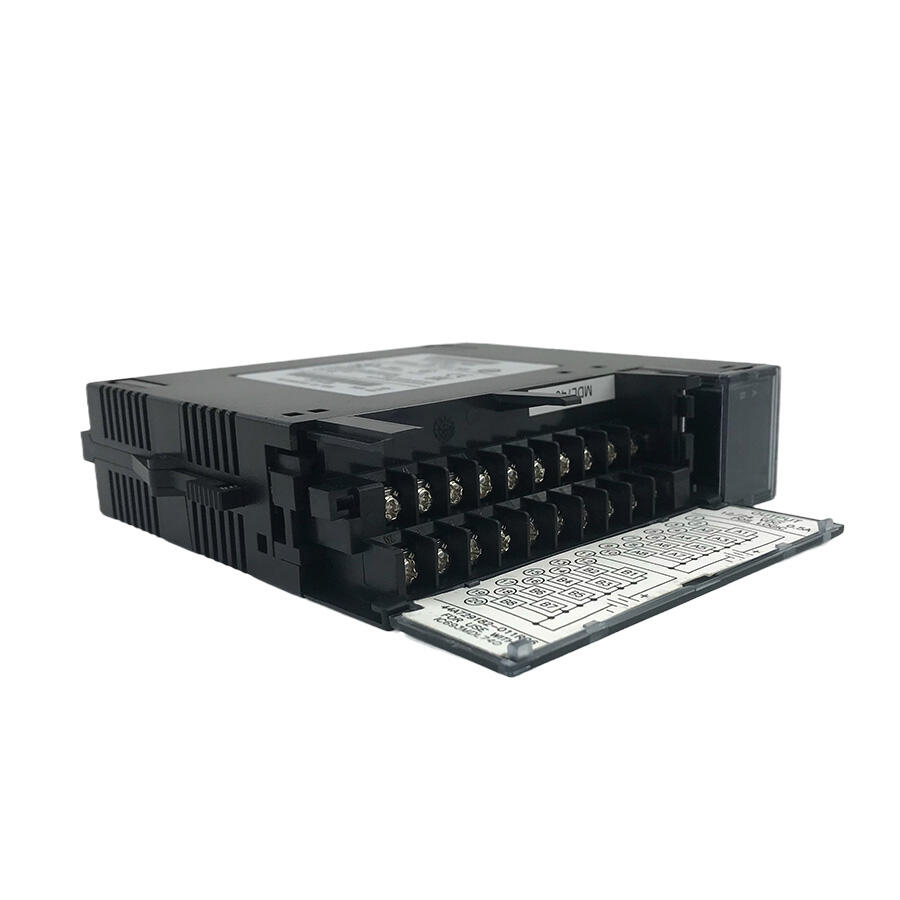

Removable Screw Terminal Block |
Compatibility |
GE Fanuc Series 90-30 PLCs |
Operating Temperature |
0°C to 60°C |
Storage Temperature |
-40°C to 85°C |
Relative Humidity |
5% to 95% (non-condensing) |
Status Indication |

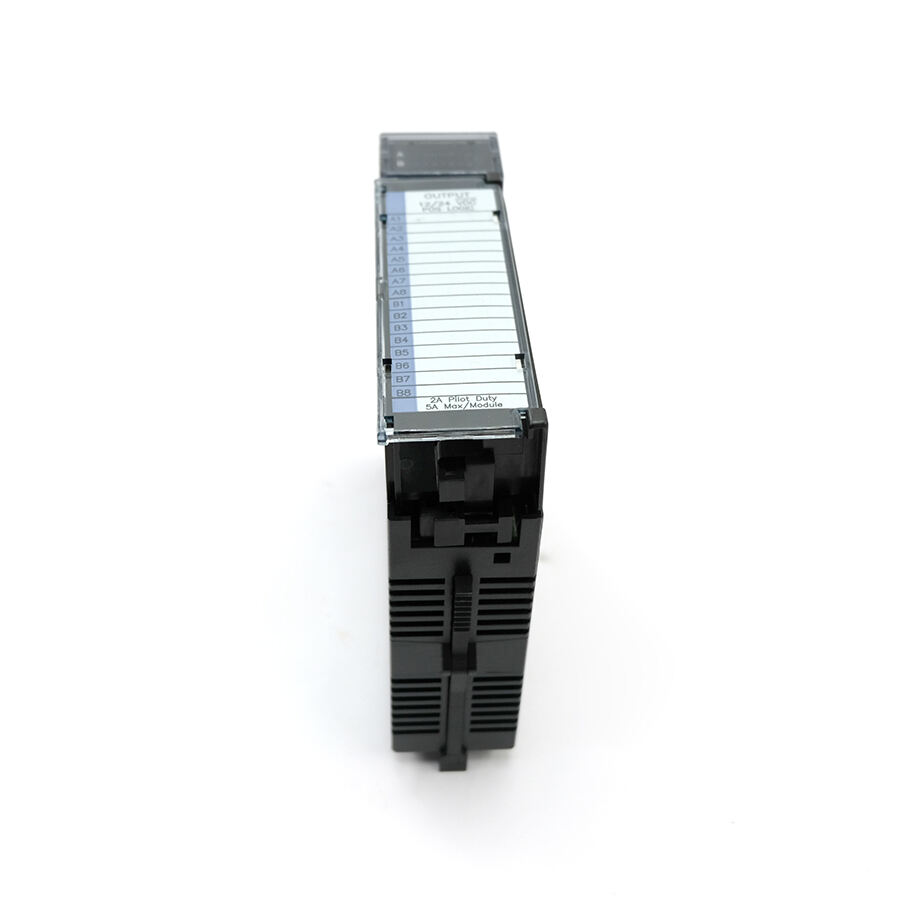

Per-point LED indicators |
Product Lifecycle Status |
Discontinued/Obsolete |
